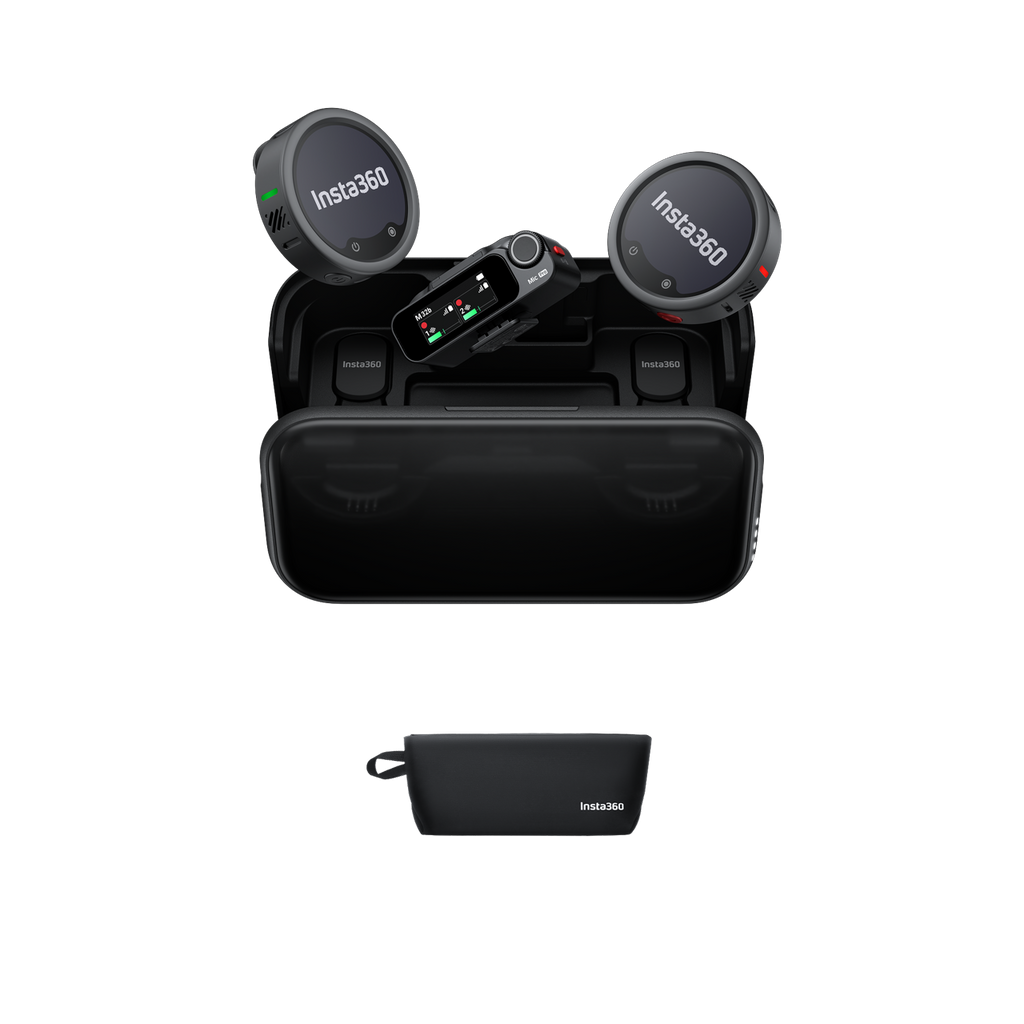

The Insta360 Mic Pro Kit (2 TX + 1 RX) is Insta360's flagship wireless microphone system, pairing two Mic Pro transmitters with a receiver and a portable charging case. Built for dual-person recording — interviews, two-host vlogs, run-and-gun documentary — it brings two category-firsts to the creator audio market: a customisable colour E-Ink display on each transmitter and a 3-mic array with four selectable pickup patterns. Each transmitter records clipping-proof 32-bit float audio to 32GB of onboard storage, while AI noise cancellation, timecode sync, a 400m range and flexible multi-channel routing make it a complete, scalable solution for mirrorless cameras, smartphones and Insta360 cameras alike.
Key Features
-
Two transmitters for dual capture — Record two subjects simultaneously, each with its own clipping-proof internal backup, ideal for interviews, podcasts and two-presenter shoots.
-
Customisable E-Ink display on each transmitter — A 1.22" six-colour E-Ink screen on every transmitter can show a logo, name or channel number — set straight from the Insta360 app — for instant identification when multiple units are clipped to different people.
-
3-mic array with four pickup patterns — Each transmitter offers Omnidirectional, Super-directional, Cardioid and Figure-8 patterns, adapting to dialogue, interviews or ambient capture without swapping hardware.
-
32-bit float internal recording — Both transmitters record 32-bit float to 32GB onboard, making clipping mathematically impossible and providing a dropout-proof safety track separate from the wireless feed.
-
AI noise cancellation — A dedicated NPU chip applies adaptive, real-time noise reduction that outperforms fixed DSP filters in changing environments.
-
Versatile connectivity — The receiver connects to mirrorless/DSLR cameras via 3.5mm, to smartphones via USB-C (Lightning adapter optional), and transmitters pair directly over Bluetooth with Insta360 cameras (Luna Ultra, X5, X4 Air, Ace Pro 2, GO Ultra) with no receiver needed.
-
Scalable multi-channel routing — Supports flexible configurations such as 2 TX to 4 RX, feeding audio to up to four cameras at once for multi-cam productions.
-
Smart gain & recording modes — Auto Gain Control, Prevent Clipping mode and Dynamic mode keep levels consistent and spike-free across scenarios.
-
400m range & timecode — Up to 400m line-of-sight transmission, plus built-in timecode (TCXO oscillator, under one frame of drift per 24 hours; 23.98–60fps).
-

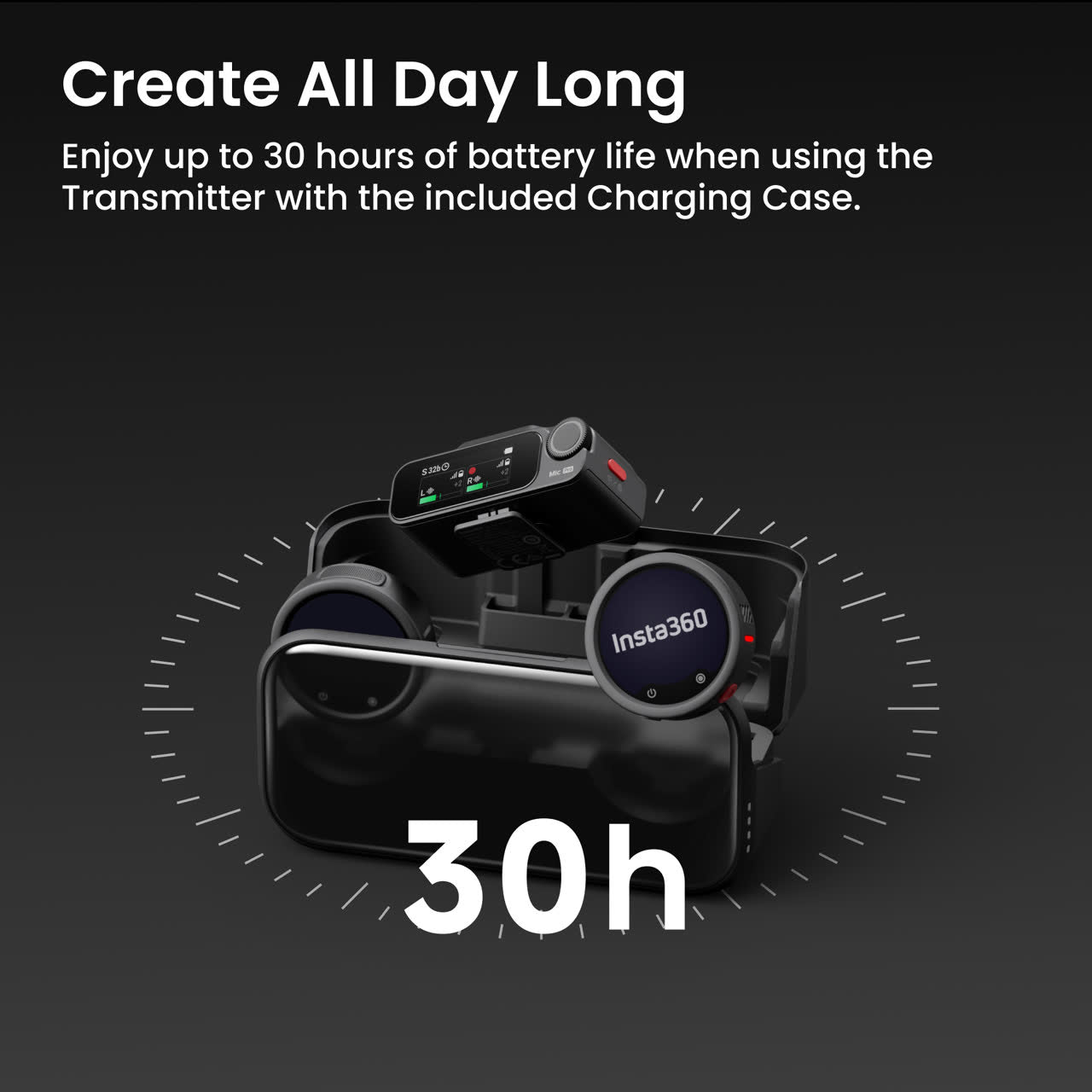

All-day power with charging case — Up to 10 hours per transmitter and 11 hours for the receiver, extended to roughly 30 hours total with the included charging case; a 5-minute fast charge gives about 1.5 hours of use.
-
Intelligent power saving — The receiver auto powers on/off with the camera, and transmitters and receiver auto-shut down after 15 minutes of inactivity to preserve battery.
Specifications
Audio (Transmitter)
|
Spec
|
Detail
|
|
Mic array
|
3-mic array per transmitter
|
|
Pickup patterns
|
Omnidirectional, Cardioid, Super-directional, Figure-8
|
|
Channel modes
|
Stereo, Mono, Dual, Safety Track
|
|
External mic
|
Lavalier microphone input supported
|
|
Noise cancellation
|
NPU-powered AI noise cancellation
|
|
Gain & tone
|
Auto Gain Control, Voice Tone Presets
|
|
Frequency response
|
20Hz–20kHz (low cut off); 100Hz–20kHz (low cut on) †
|
|
Sample rate
|
48kHz †
|
|
Bit depth
|
24-bit (wireless); 24-bit / 32-bit float (internal) †
|
|
Signal-to-noise ratio
|
72 dB †
|
|
Max SPL
|
130 dB SPL @ 10% THD †
|
Recording & Storage (per Transmitter)
|
Spec
|
Detail
|
|
Internal storage
|
32GB
|
|
24-bit mono / stereo
|
~60 hrs / ~29.7 hrs †
|
|
32-bit float mono / stereo
|
~44.8 hrs / ~22.2 hrs †
|
|
File export
|
USB-C to computer or phone
|
Wireless & Connectivity
|
Spec
|
Detail
|
|
Wireless mode
|
GFSK 1Mbps and 2Mbps
|
|
Operating frequency
|
2.400GHz–2.4835GHz
|
|
Wireless EIRP
|
≤20 dBm
|
|
Range
|
Up to 400m / 1,312ft (transmitter to receiver)
|
|
Bluetooth
|
5.4; 2.400–2.4835GHz; ≤20 dBm
|
|
Direct camera pairing
|
Insta360 Luna Ultra, X5, X4 Air, Ace Pro 2, GO Ultra (48kHz via Bluetooth)
|
|
Camera/phone connection
|
3.5mm audio cable; USB-C (Lightning adapter optional)
|
|
Multi-channel
|
4 TX + 1 RX; 2 TX + 4 RX (up to four cameras)
|
|
Timecode
|
Supported; 23.98–60fps
|
|
USB
|
USB-C
|
Display
|
Spec
|
Detail
|
|
Transmitter
|
1.22" six-colour HD E-Ink, 240 × 208 (197 PPI), customisable via app
|
|
Receiver
|
1.09" AMOLED touchscreen, 126×3 (RGB)×294 (292 PPI)
|
Transmitter (TX)
|
Spec
|
Detail
|
|
Battery capacity
|
240mAh (3.89V)
|
|
Battery life
|
Up to 10 hours
|
|
Charging time
|
~60 min to 100%; ~24 min to 80% (5V/3A)
|
|
Charger
|
5V/1A
|
|
Dimensions
|
Ø 38mm × 12.2mm H (1.50 × 0.48in)
|
|
Weight
|
19.7g (excluding clip)
|
Receiver (RX)
|
Spec
|
Detail
|
|
Battery capacity
|
410mAh (3.89V)
|
|
Battery life
|
Up to 11 hours
|
|
Charging time
|
~60 min to 100%; ~30 min to 80% (5V/3A)
|
|
Charger
|
5V/1A
|
|
Connectivity
|
USB-C, 3.5mm output, cold-shoe clip
|
|
Power saving
|
Auto on/off with camera; auto power-off after 15 min inactivity
|
|
Dimensions
|
55.8 × 27.65 × 21mm (2.20 × 1.09 × 0.83in)
|
|
Weight
|
29.8g
|
Charging Case
|
Spec
|
Detail
|
|
Battery capacity
|
2815mAh (3.89V)
|
|
Total system runtime
|
Up to 30 hours (2 TX + 1 RX with case)
|
|
Charging time
|
~2 hours to 100% (5V/3A)
|
|
Charger
|
5V/3A
|
|
Fast charge
|
5 min ≈ 1.5 hours of use
|
|
Dimensions
|
122 × 61.9 × 42.2mm (4.80 × 2.44 × 1.66in)
|
|
Weight
|
174g
|
Environment
|
Spec
|
Detail
|
|
Operating temperature
|
−10°C to 45°C
|
|
Charging temperature
|
0°C to 45°C
|
|
Waterproof / Dustproof
|
Not supported
|

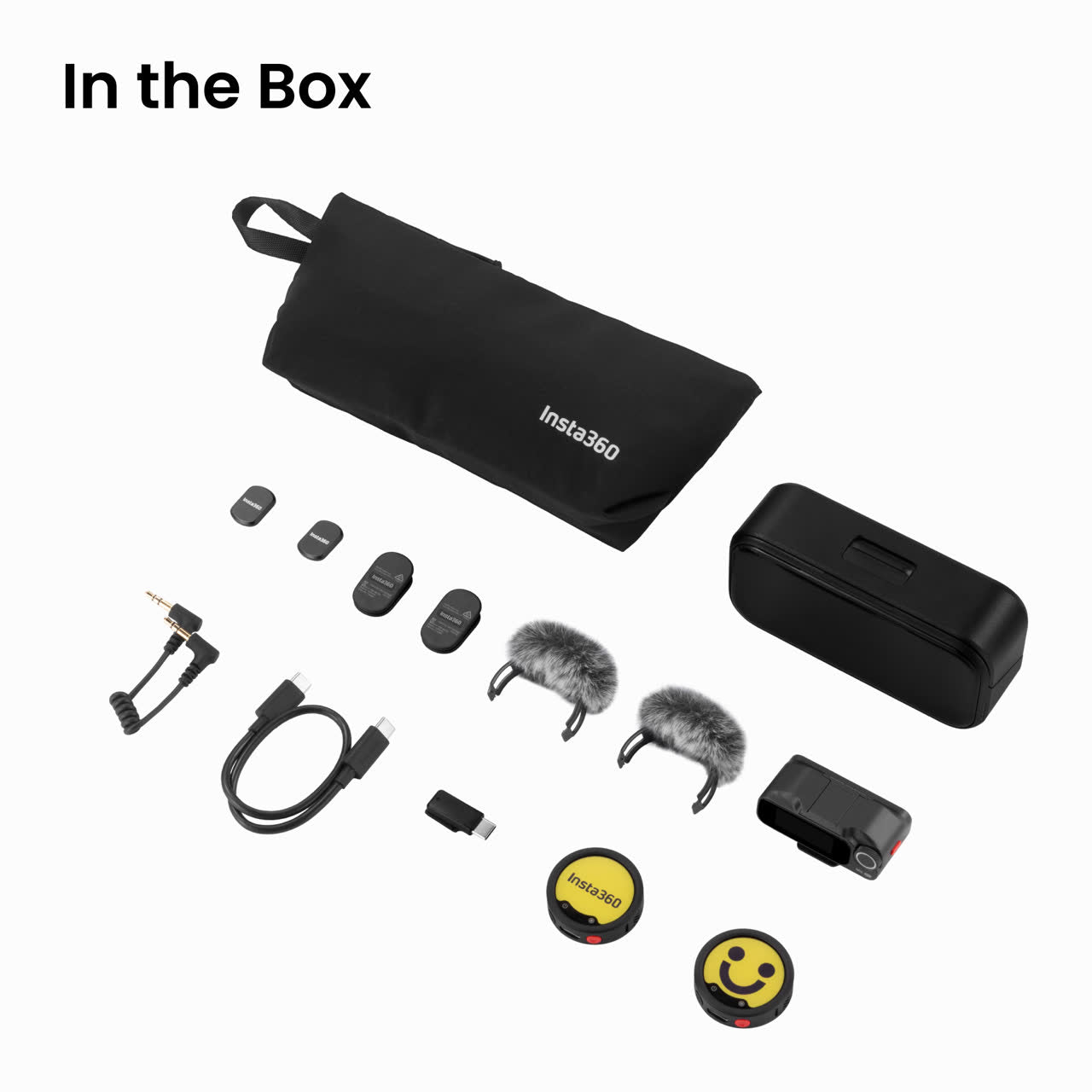

What's in the Box
