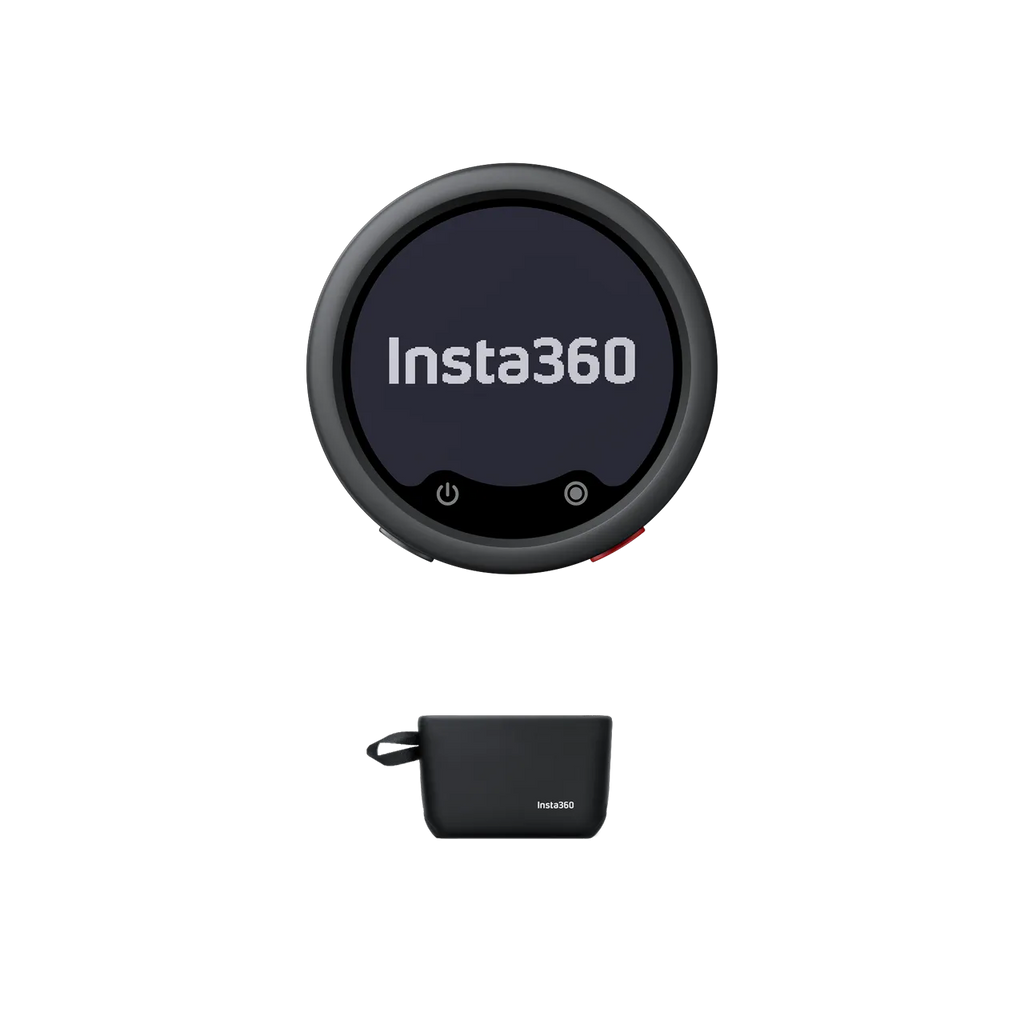

The Insta360 Mic Pro Transmitter is the flagship lavalier-style wireless transmitter from Insta360, built around two category-firsts: a customisable colour E-Ink display and a 3-mic array with four selectable pickup patterns. A clip-on, badge-shaped puck weighing under 20g, it records clipping-proof 32-bit float audio to 32GB of onboard storage, filters background noise in real time via a dedicated NPU chip, and pairs directly over Bluetooth with compatible Insta360 cameras — no receiver required. It's a single transmitter, ideal for solo creators who shoot on an Insta360 camera or who want to add to an existing Mic Pro setup.
Key Features
-
Customisable E-Ink display — A 1.22" six-colour HD E-Ink screen covers the face of the transmitter. Upload logos, names, channel art or graphics through the Insta360 app for instant visual identity and quick set recognition. Because E-Ink only draws power when refreshing, it barely affects battery life and stays visible even when powered off.
-

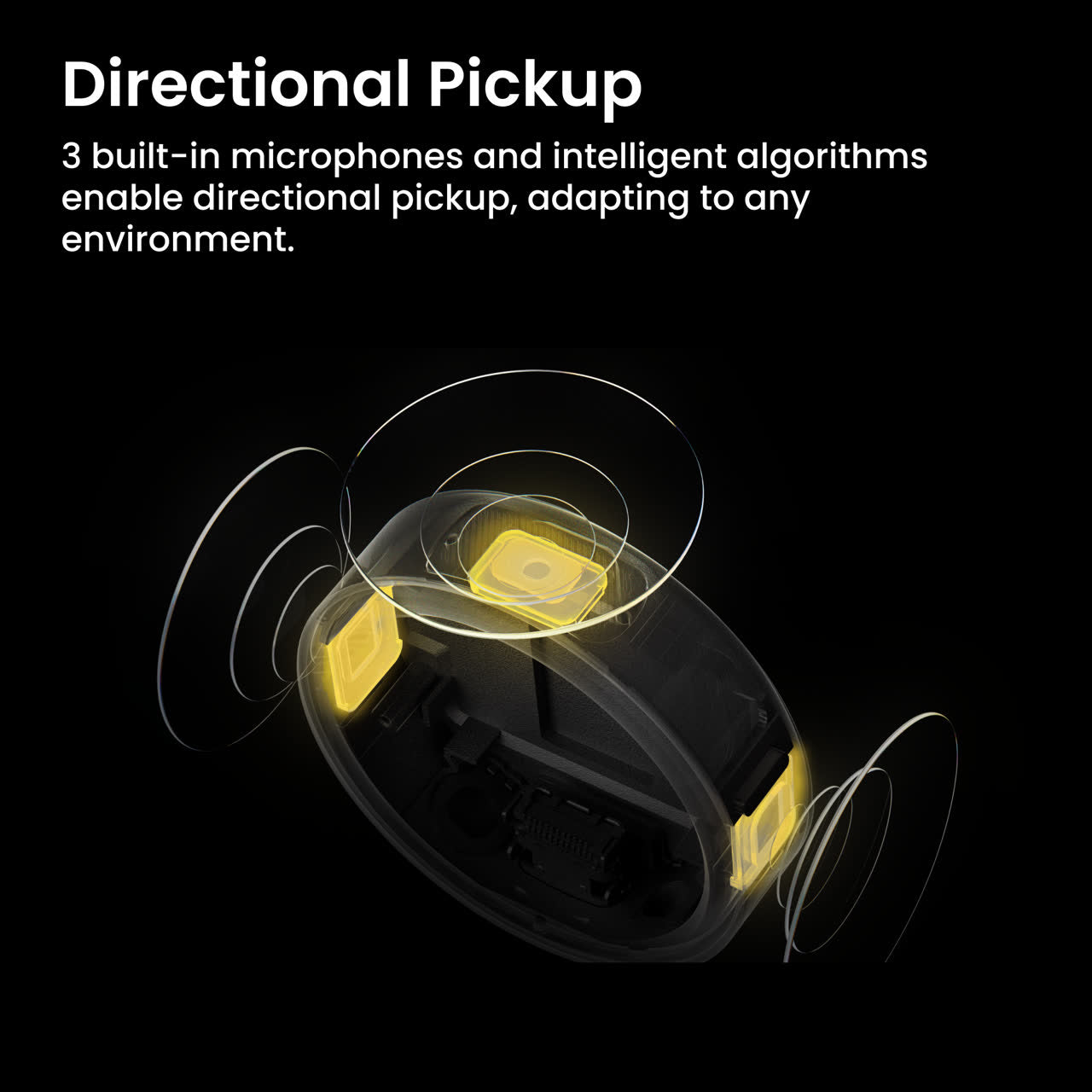

3-mic array with four pickup patterns — DSP-generated polar patterns — Omnidirectional, Cardioid, Super-directional and Figure-8 — let a single transmitter adapt to dialogue, interviews or ambient capture without changing hardware.
-
32-bit float internal recording — Records internally in 32-bit float to 32GB of onboard memory across Stereo, Mono, Dual and Safety Track modes, making clipping mathematically impossible and giving you a backup track independent of the wireless signal.
-
AI noise cancellation — A built-in NPU chip runs adaptive AI noise reduction in real time, outperforming fixed DSP filters in variable-noise environments.
-
Direct camera connection — Pairs over Bluetooth directly with compatible Insta360 cameras (Luna Ultra, X5, X4 Air, Ace Pro 2, GO Ultra) for 48kHz audio with no receiver needed.
-
Smart gain & tone control — Auto Gain Control adjusts levels to your voice intensity to prevent spikes, with Voice Tone Presets and clipping-protection modes for consistent results across scenarios.
-
400m range — A 2.4GHz GFSK protocol delivers up to 400m (1,312ft) of line-of-sight transmitter-to-receiver range for reliable capture in large or crowded spaces.
-
Timecode sync — Built-in timecode for clean multi-camera workflows, supporting frame rates from 23.98 to 60fps.
-

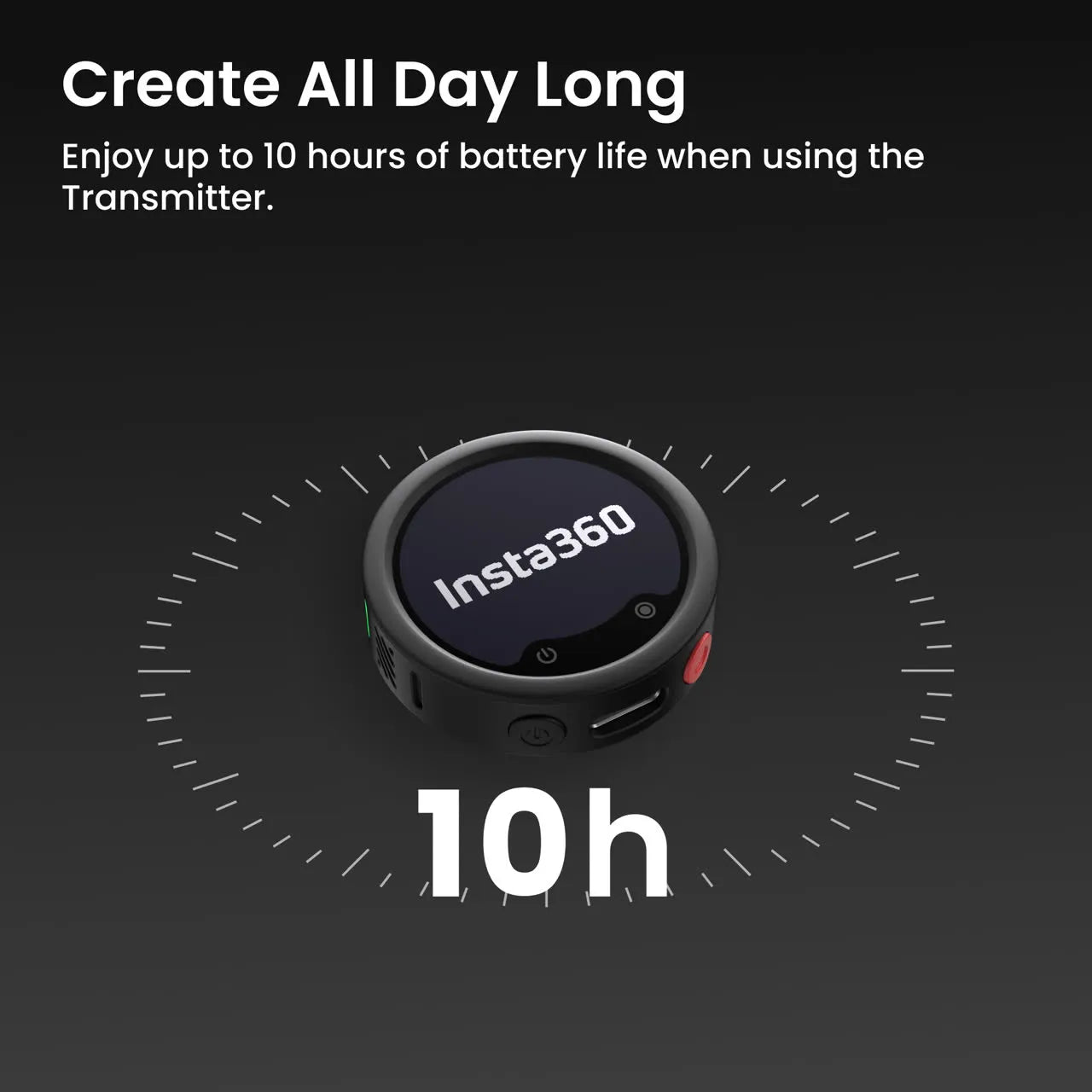

All-day battery & fast charge — Up to 10 hours per charge, a full charge in about 60 minutes, and a 5-minute fast charge for roughly 1.5 hours of use.
-
Lavalier & USB-C ready — Accepts an external lavalier mic, and connects via USB-C for fast file export to a computer or phone.
Compatibility
Insta360 Luna Ultra, Insta360 X5, Insta360 X4 Air, Insta360 Go Ultra
Specifications
Microphone & Audio
|
Spec
|
Detail
|
|
Mic array
|
3-mic array
|
|
Pickup patterns
|
Omnidirectional, Cardioid, Super-directional, Figure-8
|
|
Channel modes
|
Stereo, Mono, Dual, Safety Track
|
|
External mic
|
Lavalier microphone input supported
|
|
Noise cancellation
|
NPU-powered AI noise cancellation
|
|
Gain & tone
|
Auto Gain Control, Voice Tone Presets
|
|
Frequency response
|
20Hz–20kHz (low cut off); 100Hz–20kHz (low cut on) †
|
|
Sample rate
|
48kHz †
|
|
Bit depth
|
24-bit (wireless); 24-bit / 32-bit float (internal) †
|
|
Signal-to-noise ratio
|
72 dB †
|
|
Max SPL
|
130 dB SPL @ 10% THD †
|
Recording & Storage
|
Spec
|
Detail
|
|
Internal storage
|
32GB
|
|
24-bit mono / stereo
|
~60 hrs / ~29.7 hrs †
|
|
32-bit float mono / stereo
|
~44.8 hrs / ~22.2 hrs †
|
|
File export
|
USB-C to computer or phone
|
Wireless & Connectivity
|
Spec
|
Detail
|
|
Wireless mode
|
GFSK 1Mbps and 2Mbps
|
|
Operating frequency
|
2.400GHz–2.4835GHz
|
|
Wireless EIRP
|
≤20 dBm
|
|
Range
|
Up to 400m / 1,312ft (transmitter to receiver)
|
|
Bluetooth
|
5.4; 2.400–2.4835GHz; ≤20 dBm
|
|
Direct camera pairing
|
Insta360 Luna Ultra, X5, X4 Air, Ace Pro 2, GO Ultra (48kHz via Bluetooth)
|
|
Timecode
|
Supported; 23.98–60fps
|
|
USB
|
USB-C
|
Display
|
Spec
|
Detail
|
|
Type
|
1.22" six-colour HD E-Ink, customisable via app
|
|
Resolution
|
240 × 208 (197 PPI)
|
Battery & Power
|
Spec
|
Detail
|
|
Battery capacity
|
240mAh (3.89V)
|
|
Battery life
|
Up to 10 hours
|
|
Charger
|
5V/1A (max 5V)
|
|
Charging method
|
USB-C cable or charging case
|
|
Charging time
|
~60 min to 100%; ~24 min to 80% (5V/3A)
|
|
Fast charge
|
5 min ≈ 1.5 hours of use
|
Physical & Environment
|
Spec
|
Detail
|
|
Dimensions
|
Ø 38mm × 12.2mm H (1.50 × 0.48in)
|
|
Weight
|
19.7g (excluding clip)
|
|
Operating temperature
|
−10°C to 45°C
|
|
Charging temperature
|
0°C to 45°C
|
|
Waterproof / Dustproof
|
Not supported
|

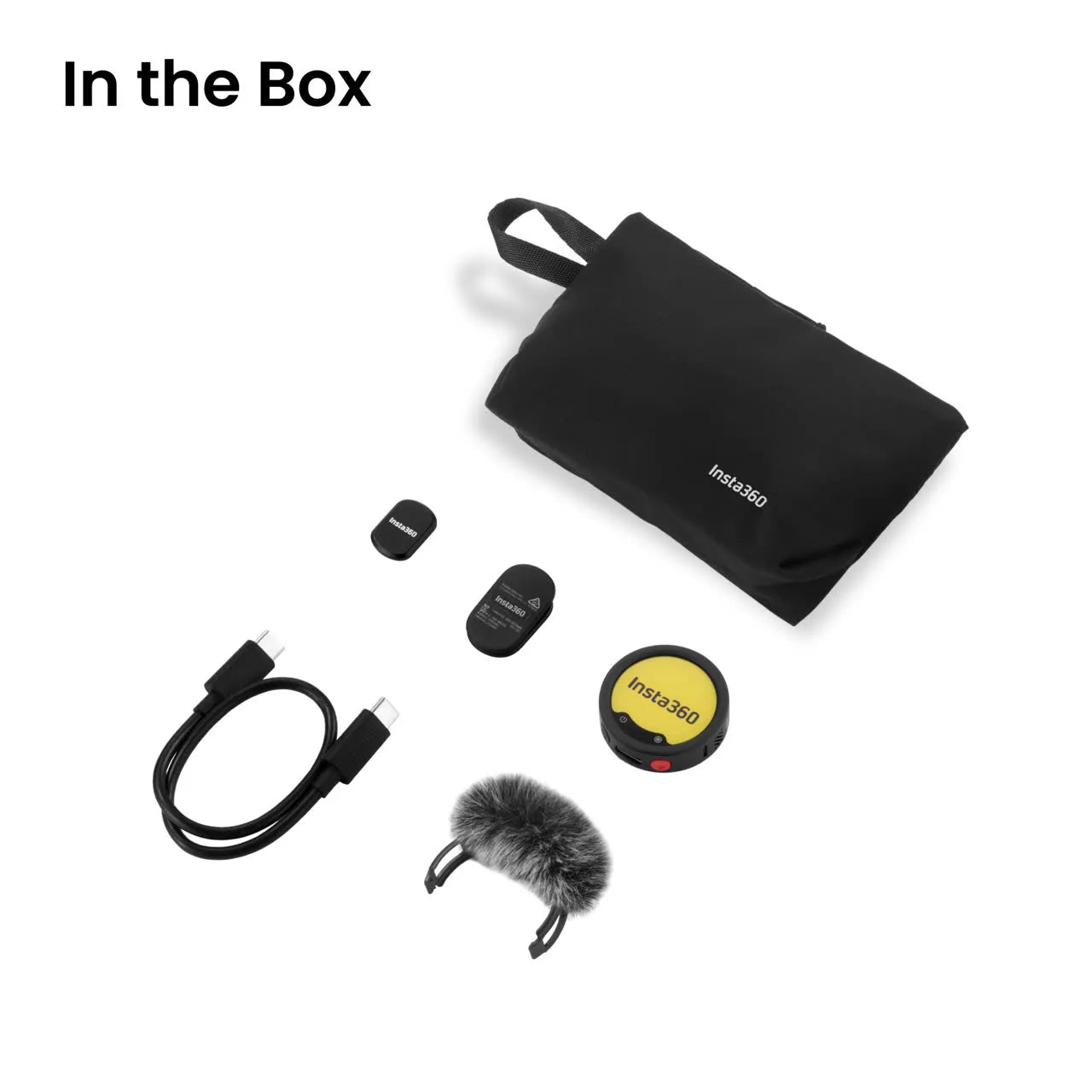

What's in the Box
